Hydraulic breakers

Hydraulic breakers, also known as hydraulic hammers or rock breakers, are powerful and versatile construction attachments designed for breaking and demolishing hard materials like concrete, rock, asphalt, and more. They are commonly used in various industries, including construction, mining, quarrying, and demolition.

Hydraulic breakers are the oldest hydraulic attachments for carriers. The first serial manufactured rock breaker was the Krupp HM 400 in 1967 and the patent was secured in 1963. Excavator jack hammers are impact devices designed to break any kind of rock or concrete with any hardness or physical property. They have a wide range of applications such as demolition, deconstruction, primary rock excavation, secondary rock breaking, trenching, foundation work, asphalt cutting and many others.

Today our excavator hydraulic hammers are available from ~ 50 kg to more than 10,000 kg of operating weight for any kind of carrier. Over sixty years of development of the breaker hammers has produced advances at different levels, such as self-lubricating systems, sound & vibration damped systems, automatic rock hardness adjusting systems, energy recovery, solid body concept and much more.

Key Features:

  • Our range of premium breakers give you everything you want from a hydraulic breaker: efficient and highly adaptable products, that combine superior efficiency and performance with high durability and low impact on the environment.

SB 552

Whatever your industry

Choose an SB hydraulic breaker as your partner for a huge range of tasks. Suitable for most carriers like excavators, backhoe and skid steer loaders as well as demolition robots, it will get the job done – quickly and economically!

Hydraulic breaker for excavators of 9-15 tons (19,800-33,000 lb)

  • Carrier weight class ¹: 9 t – 15 t
  • Oil flow: 65 l/min – 115 l/min
  • Service weight ²: 520 kg
  • Working tool diameter: 100 mm
  • Working length of tool: 495 mm
  • Hydraulic input power, max: 29 kW
  • Operating pressure: 100 bar – 150 bar
  • Impact rate: 650 blows/min – 1,150 blows/min
  • Sound power level, guaranteed ³: 126 dB(A)
Enquire About Product

SB 702

Hydraulic breaker for excavators of 10-17 tons (22,000-37,500 lb)

  • Carrier weight class ¹: 10 t – 17 t
  • Oil flow: 80 l/min – 120 l/min
  • Service weight ²: 720 kg
  • Working tool diameter: 105 mm
  • Working length of tool: 520 mm
  • Hydraulic input power, max: 34 kW
  • Operating pressure: 120 bar – 170 bar
  • Impact rate: 600 blows/min – 1,050 blows/min
  • Sound power level, guaranteed ³: 122 dB(A)
Enquire About Product

SB 1102

The biggest Solid Body hydraulic breaker

Solid Body Breakers are perfect for demolishing light concrete structures and asphalt pavements, both outdoors and indoors, performing earthworks, scaling in underground operations, and cleaning ladles and converters in foundries.

Hydraulic breaker for excavators of 13-24 tons (29,000-53,000 lb)

  • Carrier weight class ¹: 13 t – 24 t
  • Oil flow: 100 l/min – 135 l/min
  • Service weight ²: 1,060 kg
  • Working tool diameter: 120 mm
  • Working length of tool: 610 mm
  • Hydraulic input power, max: 40 kW
  • Operating pressure: 130 bar – 180 bar
  • Impact rate: 550 blows/min – 850 blows/min
  • Sound power level, guaranteed ³: 123 dB(A)
Enquire About Product

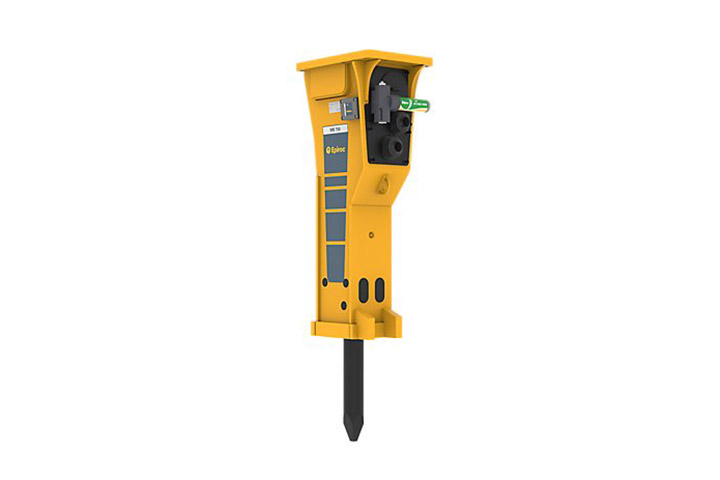

MB 750

The medium breaker is ideal for concrete and asphalt demolition work, secondary rock breaking and primary rock excavation on construction sites.

Hydraulic breaker for excavators of 10-17 tons (22,000-37,500 lb)

  • Carrier weight class ¹: 10 t – 17 t
  • Oil flow: 80 l/min – 120 l/min
  • Service weight ²: 750 kg
  • Working tool diameter: 100 mm
  • Working length of tool: 510 mm
  • Hydraulic input power, max: 34 kW
  • Operating pressure: 140 bar – 170 bar
  • Impact rate: 370 blows/min – 840 blows/min
  • Sound power level, guaranteed ³: 117 dB(A)
Enquire About Product

MB 1000

The medium hydraulic breaker is efficient and highly adaptable product, making him extremely versatile. Combining superior efficiency and performance with high durability and low impact on the environment.

Hydraulic breaker for excavators of 12-21 tons (26,500-46,300 lb)

  • Carrier weight class ¹: 12 t – 21 t
  • Oil flow: 85 l/min – 130 l/min
  • Service weight ²: 1,000 kg
  • Working tool diameter: 110 mm
  • Working length of tool: 570 mm
  • Hydraulic input power, max: 39 kW
  • Operating pressure: 160 bar – 180 bar
  • Impact rate: 350 blows/min – 750 blows/min
  • Sound power level, guaranteed ³: 120 dB(A)
Enquire About Product

MB 1200

Choose our medium hydraulic breakers as your partner for a huge range of tasks. Suitable for a wide range of carriers like wheeled and crawler excavators will get the job done – quickly and economically!

Hydraulic breaker for excavators of 15-26 tons (33,100-57,300 lb)

  • Carrier weight class ¹: 15 t – 26 t
  • Oil flow: 100 l/min – 140 l/min
  • Service weight ²: 1,200 kg
  • Working tool diameter: 120 mm
  • Working length of tool: 600 mm
  • Hydraulic input power, max: 42 kW
  • Operating pressure: 160 bar – 180 bar
  • Impact rate: 340 blows/min – 680 blows/min
  • Sound power level, guaranteed ³: 120 dB(A)
Enquire About Product
Can we break it? Yes we can!
