Hydraulic breakers

Hydraulic breakers, also known as hydraulic hammers or rock breakers, are powerful and versatile construction attachments designed for breaking and demolishing hard materials like concrete, rock, asphalt, and more. They are commonly used in various industries, including construction, mining, quarrying, and demolition.

Hydraulic breakers are the oldest hydraulic attachments for carriers. The first serial manufactured rock breaker was the Krupp HM 400 in 1967 and the patent was secured in 1963. Excavator jack hammers are impact devices designed to break any kind of rock or concrete with any hardness or physical property. They have a wide range of applications such as demolition, deconstruction, primary rock excavation, secondary rock breaking, trenching, foundation work, asphalt cutting and many others.

Today our excavator hydraulic hammers are available from ~ 50 kg to more than 10,000 kg of operating weight for any kind of carrier. Over sixty years of development of the breaker hammers has produced advances at different levels, such as self-lubricating systems, sound & vibration damped systems, automatic rock hardness adjusting systems, energy recovery, solid body concept and much more.

Key Features:

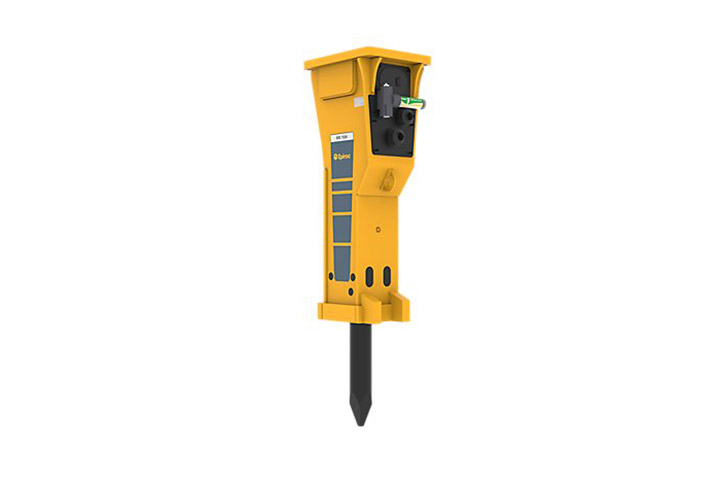

MB 1500

The medium breaker is ideal for concrete and asphalt demolition work, secondary rock breaking and primary rock excavation on construction sites.

Medium breaker for excavators of 17-29 tons (37,500-63,900 lb)

  • Carrier weight class ¹: 17 t – 29 t
  • Oil flow: 120 l/min – 155 l/min
  • Service weight ²: 1,500 kg
  • Working tool diameter: 135 mm
  • Working length of tool: 635 mm
  • Hydraulic input power, max: 46 kW
  • Operating pressure: 160 bar – 180 bar
  • Impact rate: 330 blows/min – 680 blows/min
  • Sound power level, guaranteed ³: 121 dB(A)

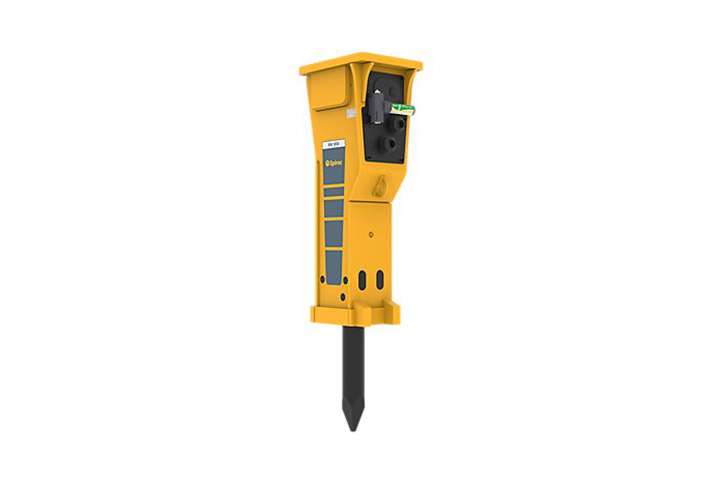

MB 1650

The medium hydraulic breaker is efficient and highly adaptable product, making him extremely versatile. Combining superior efficiency and performance with high durability and low impact on the environment.

Hydraulic breaker for excavators of 19-32 tons (41,900-70,500 lb)

  • Carrier weight class ¹: 19 t – 32 t
  • Oil flow: 130 l/min – 170 l/min
  • Service weight ²: 1,650 kg
  • Working tool diameter: 140 mm
  • Working length of tool: 670 mm
  • Hydraulic input power, max: 51 kW
  • Operating pressure: 160 bar – 180 bar
  • Impact rate: 320 blows/min – 640 blows/min
  • Sound power level, guaranteed ³: 121 dB(A)
Can we break it? Yes we can!
